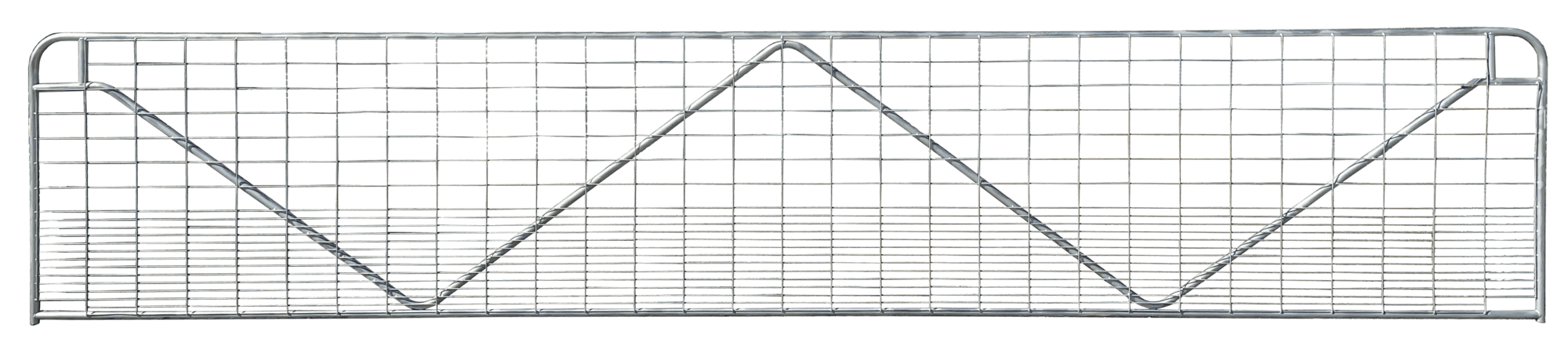

N Stay, V Stay and M Stay gates
- All pipe is 2mm thick and hot-dip galvanised inside and out
- ‘N’Stays available in matching left & right pairs
- Fully welded notched joints to resist cracking
- 1170mm high
- 5mm pre-galvanised wire mesh
- Tight 150mm x 100mm aperture
- 350 grade high tensile 25NB pipe
| Stay Type | Nominal mm (ft) | Actual mm | Mesh mm | Height (mm) | Weight (kg) |
|---|
| "V" | 2440(8'0") | 2390 | 150x100x5 | 1170 | 22 |
| "V" | 2745(9'0") | 2695 | 150x100x5 | 1170 | 24 |
| "N" | 3050(10'0") | 3000 | 150x100x5 | 1170 | 27 |
| "N" | 3350(11'0") | 3300 | 150x100x5 | 1170 | 29 |
| "N" | 3660(12'0") | 3610 | 150x100x5 | 1170 | 31 |
| "N" | 3960(13'0") | 3910 | 150x100x5 | 1170 | 33 |
| "N" | 4270(14'0") | 4220 | 150x100x5 | 1170 | 36 |
| "N" | 4570(15'0") | 4520 | 150x100x5 | 1170 | 38 |
| "N" | 4880(16'0") | 4830 | 150x100x5 | 1170 | 40 |
| "N" | 5484(18'0") | 5434 | 150x100x5 | 1170 | 44 |
| "M" | 6095(20'0") | 6045 | 150x100x5 | 1170 | 52 |

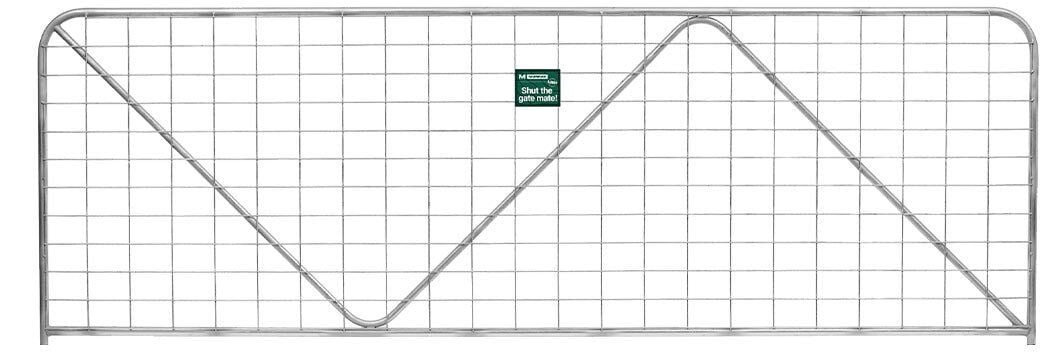

 "Farm Gate N Stay")
